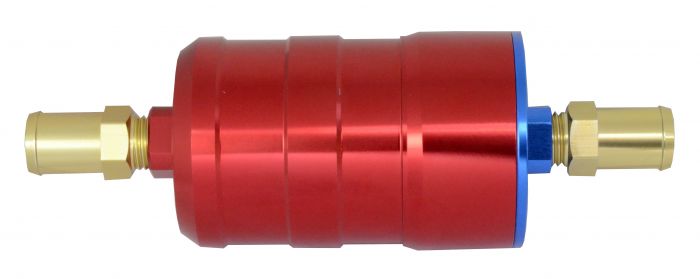

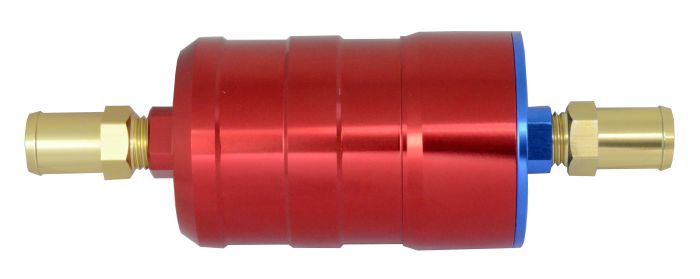

BULLET FUEL FILTER 15mm-15mm (Red) with mounting clips

Product Code
BULLETA9-R
£ 54.45
In stock

SYTEC BULLET FUEL FILTER 15mm-15mm (Red)

Sytec High Flow Fuel Filters are designed for in line application. These filters have a flow capacity of 500 Ltr/Hr and are capable of handling up to 10 Bar pressure. These filters are designed for use in either a Pre or Post fuel pump format and in both carburettor (Low Pressure) or fuel injection (High Pressure) fuel systems.



Colours Red/Blue
Body Material:- Aluminium (Anodised)
Seal Material:- Viton
Inlet Union Size:- 15mm
Outlet Union Size:- 15mm
Main Body Internal Thread:- 1/4 NPT
Filter Material:- Paper  (10 Micron)
Optional Filter Element:- Stainless Steel (55 Micron)
Mounting Clips:- Yes x 2
Fuel type:- Petrol E5, E10, Diesel
Flow (Max):- 500 Ltr/hr
Pressure (Max):- 10 Bar
Main Body Dimensions:- 110x50mm
Main Body Weight :- 150 gms
More Information
Product Code BULLETA9-R
Colour Red
Manufacturer Sytec
Description

SYTEC BULLET FUEL FILTER 15mm-15mm (Red)

Sytec High Flow Fuel Filters are designed for in line application. These filters have a flow capacity of 500 Ltr/Hr and are capable of handling up to 10 Bar pressure. These filters are designed for use in either a Pre or Post fuel pump format and in both carburettor (Low Pressure) or fuel injection (High Pressure) fuel systems.



Colours Red/Blue
Body Material:- Aluminium (Anodised)
Seal Material:- Viton
Inlet Union Size:- 15mm
Outlet Union Size:- 15mm
Main Body Internal Thread:- 1/4 NPT
Filter Material:- Paper  (10 Micron)
Optional Filter Element:- Stainless Steel (55 Micron)
Mounting Clips:- Yes x 2
Fuel type:- Petrol E5, E10, Diesel
Flow (Max):- 500 Ltr/hr
Pressure (Max):- 10 Bar
Main Body Dimensions:- 110x50mm
Main Body Weight :- 150 gms
