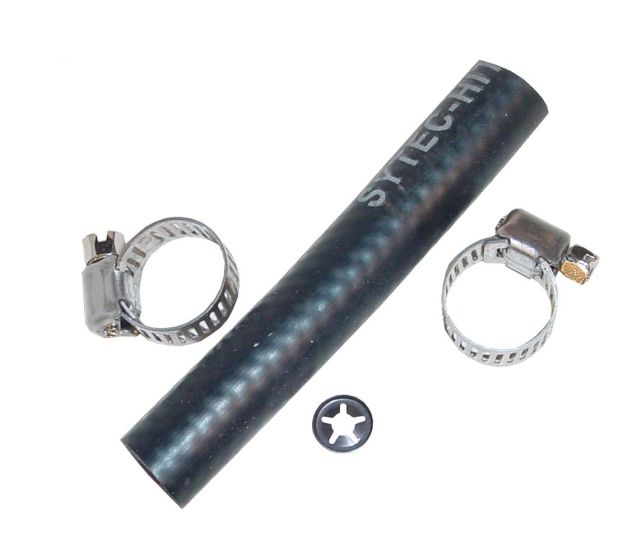

Cohline 2190 In Tank Submersible Fuel Hose Kit & 2 Clips
Cohline 2190 In Tank Submersible Fuel Hose Kit & 2 Clips
Length of hose :- 80mm
Specifications
Internal Diameter :-7.3mm ID
Outer Diameter:- 14.5mm OD
Meterial Inner Lining:- NBR
Material Reinforcement:- CO
Material Outer Layer:- NBR
Reinforcement:- Cotton Overbraid
Fuels:- Petrol, E85, E100, Diesel, PME (RME) consisting Diesel Fuels, Flexible Fuels
Temerature Range -40 Deg C up to +70 Deg C
Recommendations:- In-Tank (Only) Fuel Injection
Max Bust Pressure:- 30 Bar
Testing Pressure 20 Bar
Bend Radius:- 70mm
Working Pressure :- 6 Bar
Bend Radius :- 70mm
Working Pressure :- 6 Bar
Standards
VW TL52256
| Product Code | FK001 |
|---|---|
| Manufacturer | Cohline |
| Description | Cohline 2190 In Tank Submersible Fuel Hose Kit & 2 ClipsLength of hose :- 80mmSpecificationsInternal Diameter :-7.3mm ID Outer Diameter:- 14.5mm OD Meterial Inner Lining:- NBR Material Reinforcement:- CO Material Outer Layer:- NBR Reinforcement:- Cotton Overbraid Fuels:- Petrol, E85, E100, Diesel, PME (RME) consisting Diesel Fuels, Flexible Fuels Temerature Range -40 Deg C up to +70 Deg C Recommendations:- In-Tank (Only) Fuel Injection Max Bust Pressure:- 30 Bar Testing Pressure 20 Bar Bend Radius:- 70mm Working Pressure :- 6 Bar Bend Radius :- 70mm Working Pressure :- 6 Bar
Standards VW TL52256 |
