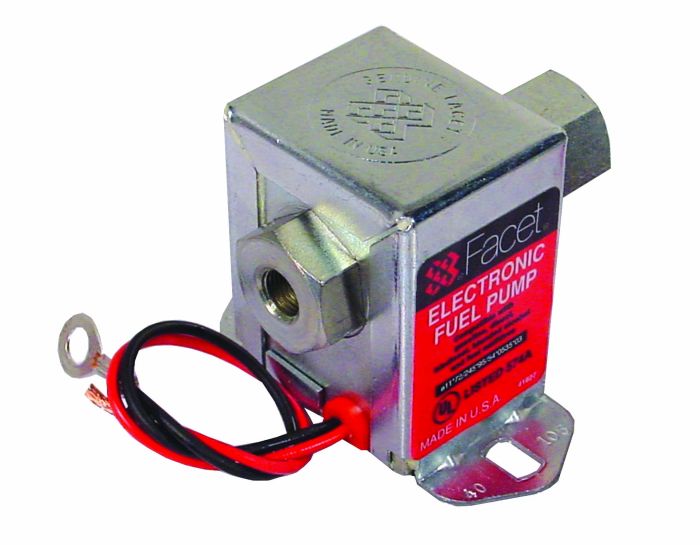

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Industrial
Pump:- 40185
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 11.5-9
Flow:- US Gallons/Hr 32
Dry Prime Height in Mtrs:- 1.0
Thread Size:- 1/8th nptf
Check Valve:- Yes
Operating Temperature:- -40º F to 180° F
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Please Note:- The product in not suitable for use in the aircraft industry
Cross Reference:-
| Carrier | 300-00384 |
| HC Cargo | 070057 |
| Westerbeke | 39275 |
| Product Code | SS185 | ||||||
|---|---|---|---|---|---|---|---|
| Fuel | Petrol up to E10, Petrol + E85, Diesel, Petrol up to E5 | ||||||
| Voltage | 12v DC | ||||||
| Manufacturer | Facet | ||||||
| Description | These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives. Check Valve:- Yes Average Run Time or MTBF:- 6000 hrs Legal Requirements:- Certified & Complies With EEC 95/54 Requirements Length:- 75mm Height:- 60mm Weight:-0.5kg Please Note:- The product in not suitable for use in the aircraft industry Cross Reference:-
|
