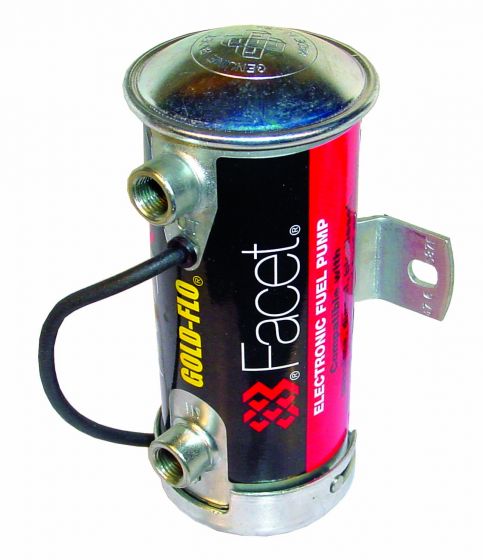

Facet 476087 Silver Top Cylindrical Fuel Pump
Facet 476087 Silver Top Cylindrical Fuel Pump - STS504
An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.
Specification:- Road
Pump:- 476087E
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 3.5-5.0
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/8th nptf
Operating Temperature:- -40º to +180° F (all Models)
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:-140mm
Diameter:- 54mm
Weight:-0.7kg
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight
Applicatins:- Motorsport, Marine, Agriculture
Cross Reference:- PRC3901
| AH134776 | |
| 91864-02800 | |
| T41054 | |
| 30-01007 | |
| 30-0010600 | |
| HC Cargo | 070003 |
| 070058 | |
| 0149-0554 | |
| 56ZE7424 | |
| D8NN-9350-BB | |
| AH134776 | |
| 247076 | |
| 6040-0 | |
| 90606262 |
| Product Code | STS504 | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel | Petrol up to E10, Petrol + E85, Diesel, Petrol up to E5 | ||||||||||||||||||||||||||||
| Voltage | 12v DC | ||||||||||||||||||||||||||||
| Manufacturer | Facet | ||||||||||||||||||||||||||||
| Description | Facet 476087 Silver Top Cylindrical Fuel Pump - STS504An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible. Specification:- Road Average Run Time or MTBF:- 6000 hrs Legal Requirements:- Certified & Complies With EEC 95/54 Requirements Length:-140mm Diameter:- 54mm Weight:-0.7kg Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight Applicatins:- Motorsport, Marine, Agriculture Cross Reference:- PRC3901
|
