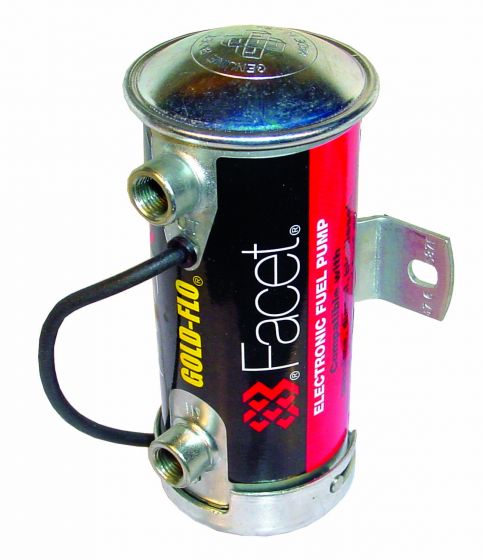

Facet 477003E Cylindrical Fuel Pump
Facet 477003E Cylindrical Fuel Pump
An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.
Specification:- Industrial
Pump:- 477003E
Voltage:- 24v
Earth:- Neg
Pressure (Psi):- 6.0-8.0
Flow:- US Gallons/Hr 30
Pre FilterMicron:-74
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/8th nptf
CheckValve:-No
Positive Shut Off Valve:- No
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Operating Temperature:- -40º to +180° F (all Models)
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:-140mm
Diameter:- 54mm
Weight:-0.7kg
Please Note:- The product in not suitable for use in the aircraft industry
