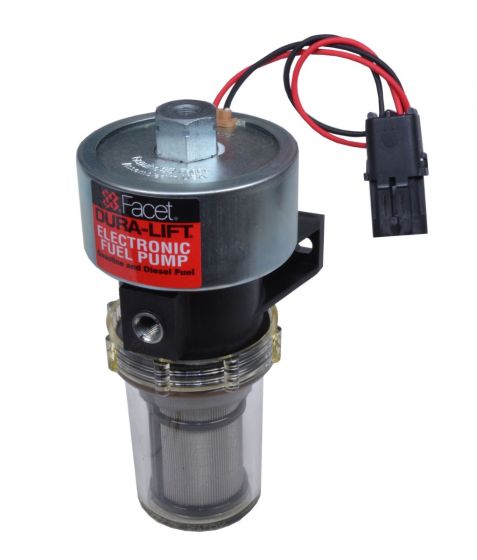

Facet 40290 Dura-Lift Fuel Pump
- Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.
- Solid State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.
- Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming. Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for visual capability to monitor the cleanliness of the stainless steel filter.
- Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.
Specification:- Industrial
Fuels:- Diesel
Voltage:- 12v
Earth:-Neg
Pressure (Psi):- 12-15
Flow (US Gallons):- 50
Dry Prime Height In Mtrs:- 1.5
Thread Size:- 1/8th nptf
Filter Micron:- 80
Loom Connector Block:- Packard
Check Valve:- Yes
Average Run Time or MTBF:- 10000 hrs
Height (mm):- 180
Width (mm):- 82
Weight (kg):- 1.1
OperatingPlease Note:- The product in not suitable for use in the aircraft industry
Temprature:- -40 to 180 deg F
| Product Code | 40290 |
|---|---|
| Fuel | Petrol up to E10, Petrol + E85, Diesel, Petrol up to E5 |
| Voltage | 12v DC |
| Manufacturer | Facet |
| Description | Facet 40290 Dura-Lift Fuel Pump
Specification:- Industrial Fuels:- Diesel Voltage:- 12v Earth:-Neg Pressure (Psi):- 12-15 Flow (US Gallons):- 50 Dry Prime Height In Mtrs:- 1.5 Thread Size:- 1/8th nptf Filter Micron:- 80 Loom Connector Block:- Packard Check Valve:- Yes Average Run Time or MTBF:- 10000 hrs Height (mm):- 180 Width (mm):- 82 Weight (kg):- 1.1 OperatingPlease Note:- The product in not suitable for use in the aircraft industry Temprature:- -40 to 180 deg F
|
