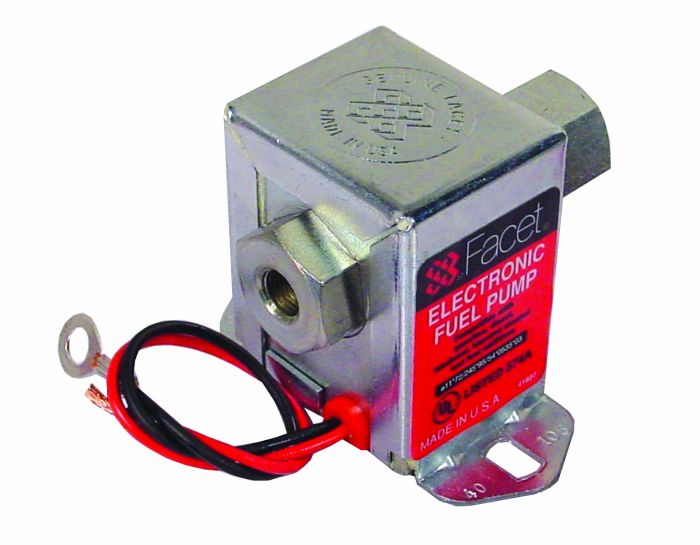

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Road
Pump:- 40254
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 1.5-4.0
Flow:- US Gallons/Hr 25
Dry Prime Height in Mtrs:- 0.6
Thread Size:-1/8th nptf
Check Valve:- Yes
Operating Temperature:- -40º F to +180° F
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight
| Product Code | SS254 |
|---|---|
| Voltage | 12v DC |
| Manufacturer | Facet |
| Description | These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives. Check Valve:- Yes Average Run Time or MTBF:- 6000 hrs Legal Requirements:- Certified & Complies With EEC 95/54 Requirements Length:- 75mm Height:- 60mm Weight:-0.5kg Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight |
