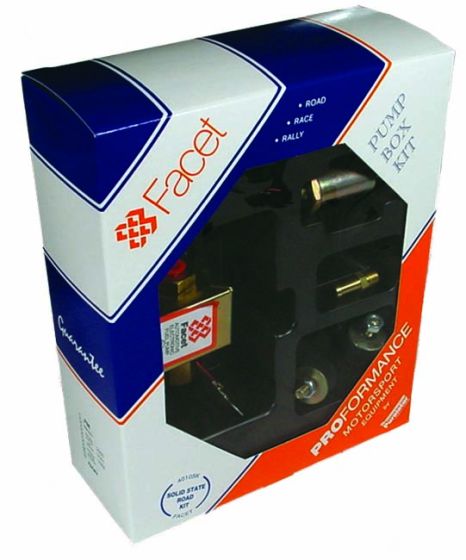

Facet Solid State Pump Kit 40105K
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres . Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Contents
1x Pump (40105)
1x 8mm Straight Union (FPA903A)
1x 8mm Filter Union (FPA906)
1x Facet Mounting Kit (FPA905)
Specification
Pump:- 40105
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 3.0-4.5
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Operating Temperature:- -31º F to 55° F (all Models)
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Please Note:- The product in not suitable for use in the aircraft industry
Applications:-
2012 RANGER 400 Fuel Pump 4X4 BODY, FUEL SYSTEM - R12RH45AG/AH/AR
2011 RANGER 400 Fuel Pump HO BODY, FUEL SYSTEM - R11RH45AG/AH/AR
2010 RANGER 4X4 400 Fuel Pump HO BODY, FUEL SYSTEM - R10RH45AG/AH/AR
2009 RANGER 2X4 500 Fuel Pump CARB BODY, FUEL SYSTEM - R09RB50AF
2009 RANGER 2X4 500 Fuel Pump CARB ISRAEL BODY, FUEL SYSTEM - M09RB50MA
2008 RANGER 500 2X4 Fuel Pump , FUEL SYSTEM - R08RB50AA
2008 RANGER 2X4 500 Fuel Pump CARB ISRAEL BODY, FUEL SYSTEM - M08RB50AA
2007 RANGER 500 Fuel Pump 2X4/4X4 FUEL SYSTEM - R07RB50AA/RH50AA
2007 RANGER 500 2X4 Fuel Pump CARB ISRAEL FUEL SYSTEM - R07RB50MA
2006 RANGER 500 2X4/4X4 Fuel Pump FUEL SYSTEM - R06RB50AA/RD50AA
2006 RANGER 500 2X4/4X4Fuel Pump FUEL SYSTEM - R06RB50AA/RD50AA
2009 Ranger 400 Fuel Pump
2010 Ranger 400 Fuel Pump
2011 Ranger 400 Fuel Pump
2012 Ranger 400 Fuel Pump
1999 Polaris Ranger 500 Fuel Pump 4x4
2000 Polaris Ranger 500 Fuel Pump 4x4
2001 Polaris Ranger 500 Fuel Pump 4x4
2002 Polaris Ranger 500 Fuel Pump 4x4
2003 Polaris Ranger 500 Fuel Pump 4x4
2004 Polaris Ranger 500 Fuel Pump 4x4
2005 Polaris Ranger 500 Fuel Pump 4x4
2006 Polaris Ranger 500 Fuel Pump 4x4
2007 Polaris Ranger 500 Fuel Pump 4x4
2008 Polaris Ranger 500 Fuel Pump 4x4
1999 Polaris Ranger 500 Fuel Pump 2x4
2000 Polaris Ranger 500 Fuel Pump 2x4
2001 Polaris Ranger 500 Fuel Pump 2x4
2002 Polaris Ranger 500 Fuel Pump 2x4
2003 Polaris Ranger 500 Fuel Pump 2x4
2004 Polaris Ranger 500 Fuel Pump 2x4
2005 Polaris Ranger 500 Fuel Pump 2x4
2006 Polaris Ranger 500 Fuel Pump 2x4
2007 Polaris Ranger 500 Fuel Pump 2x4
2008 Polaris Ranger 500 Fuel Pump 2x4
Can be used in place of Pierburg 72144051
| Product Code | 40105-K |
|---|---|
| Voltage | 12v DC |
| Manufacturer | Facet |
| Description | Facet Solid State Pump Kit 40105KThese solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres . Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives. Contents 1x Pump (40105) 1x 8mm Straight Union (FPA903A) 1x 8mm Filter Union (FPA906) 1x Facet Mounting Kit (FPA905) Specification Pump:- 40105 Legal Requirements:- Certified & Complies With EEC 95/54 Requirements Length:- 75mm Height:- 60mm Weight:-0.5kg Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal Please Note:- The product in not suitable for use in the aircraft industry
Applications:- 2012 RANGER 400 Fuel Pump 4X4 BODY, FUEL SYSTEM - R12RH45AG/AH/AR 2009 Ranger 400 Fuel Pump
1999 Polaris Ranger 500 Fuel Pump 4x4 1999 Polaris Ranger 500 Fuel Pump 2x4 Can be used in place of Pierburg 72144051
|
