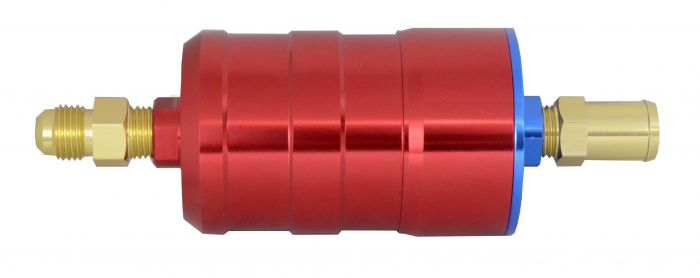

BULLET FUEL FILTER 15mm-Jic6 (Red)

BULLET FUEL FILTER 15mm-Jic6 (Red)

1/ DESIGNED FOR THE PROFESSIONAL AND MOTORSPORT ENTHUSIAST.
2/ MAY BE USED AS PUMP PRE-FILTER OR MAIN HIGH PRESSURE FILTER.
3/ ALUMINIUM ANODISED SOLID BILLET FILTER CASE & END COVER
4/ FULL RANGE OF MODELS
5/ PAPER CARTRIDGE FILTER (REPLACEABLE)
6/ METAL CLEANABLE ELEMENT (AVAILABLE)
7/ BRACKET FIXINGS
8/ HIGH FLOW LARGE FILTER ELEMENT
9/ TESTED to 10 Bar (146psi)
BODY :- Red / Blue Anodised (Inlet & outlet 1/4 nptf Female Threads)
FILTER :- High Flow 55 Micron Metal Filter or Pleated 8 Micron Paper Filter
SURFACE AREA:- 51.25 sq in For Max Filtration & Flow
FUEL :- Petrol Super Unleaded/Avgas or Diesel

FITTING OPTIONS :- 8mm , 10mm , 12mm , 15mm, JIC -6, JIC -8.
BODY SIZE :- 110mm x 50mm Dia.
WEIGHT :- 150 Grams
FLOW :- 500 Ltrs/Hr (Max)
