Nissan SX200 & Skyline GTS / GTT Walbro Motorsport Fuel Pump Upgrade Kit
Nissan SX200 & Skyline GTS / GTT Walbro Motorsport Fuel Pump Upgrade Kit
Outperforms all current market in-tank fuel pumps
- Designed for engines with more than 500hp+
- Award Winning OE Technology
- High Pressure, High flow performance
- Requires modifications to wiring, fuel lines and fuel module
- Professional installation recommended
- Out performs all current market in-tank fuel pumps

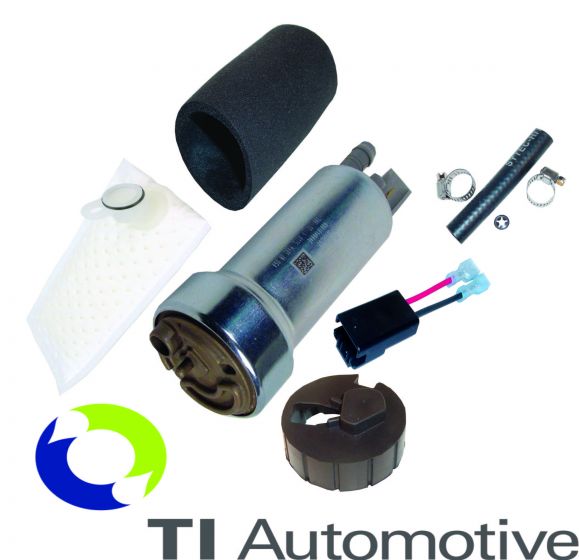

Please Note:- The carrier shown is not a part of the kit
Fittings In (mm):- 11
Fittings Out (mm):- 9
Pump:- Ti Automotive (Walbro) GST400
Voltage DC:- 12
Flow Ltr/Hr (Max):- 510
Flow Ltr/Hr @ 3 Bar (44psi):- 390
Flow Ltr/Hr @ 5 Bar (73psi):- 285
Pulse Width Modulation Compatible:- Yes
Max Pressure (Bar):- 7.5
Length (mm):- 122
Diameter (mm):- 50 / 39
Weight (Kg):-0.388
Applications:-
| Make & Model | Year |
| Nissan 200SX S14 2.0i 16v (Motorsport Upgrade) 500hp+ | 04/94-12/99 |
| Nissan 200SX S15 2.0i 16v (Motorsport Upgrade)500hp+ | |
| Nissan Skyline 2.5 Turbo GTS (Type 34) Motorsport Upgrade (500hp+) | 98-2002 |
| Nissan Skyline 2.5 Turbo GTT(Type 34) Motorsport Upgrade (500hp+) | 2001-2002 |
| Product Code | GST400-007 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel | Petrol up to E10 | ||||||||||
| Voltage | 12v DC | ||||||||||
| Manufacturer | Ti Automotive (Walbro) | ||||||||||
| Description |
Nissan SX200 & Skyline GTS / GTT Walbro Motorsport Fuel Pump Upgrade Kit
Outperforms all current market in-tank fuel pumps
Please Note:- The carrier shown is not a part of the kit
Fittings In (mm):- 11 Fittings Out (mm):- 9 Pump:- Ti Automotive (Walbro) GST400 Voltage DC:- 12 Flow Ltr/Hr (Max):- 510 Flow Ltr/Hr @ 3 Bar (44psi):- 390 Flow Ltr/Hr @ 5 Bar (73psi):- 285 Pulse Width Modulation Compatible:- Yes Max Pressure (Bar):- 7.5 Length (mm):- 122 Diameter (mm):- 50 / 39 Weight (Kg):-0.388
Applications:-
|
