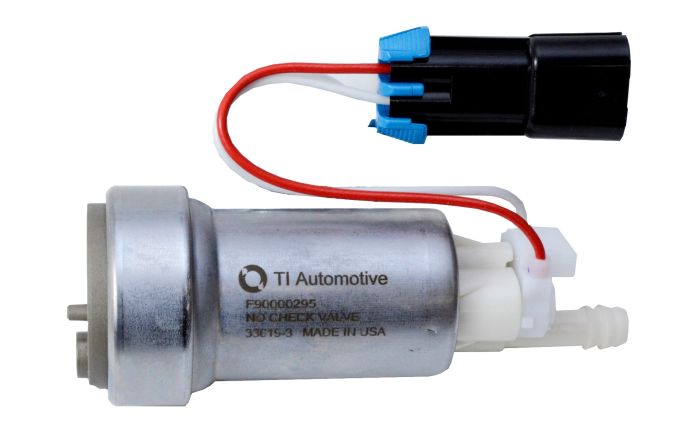

Ti-Automotive (Walbro) F90000295 535 Ltr/hr Competition In Tank Fuel Pump (Pulse Width Modulation)
Walbro 535 lph Competition In Tank Fuel Pump Kit F90000295
- Outperforms all current market in-tank fuel pumps
- Designed for engines with up to 985hp
- Award Winning OE Technology
- High Pressure, High flow performance
- OEM technology designed and developed for E85.
- All pumping components have been validated to OEM specification for approved use in E85/Flex fuel application
Fittings In (mm):- 11
Fittings Out (mm):- 9
Pump:- Ti Automotive (Walbro) F90000295
Voltage DC:- 12
Pulse Width Modulation Compatible:- Yes
One Way Valve (NRV):- No
Flow Ltr/Hr (Max):- 535
Flow Ltr/Hr @ 3 Bar (44psi):- 456
Flow Ltr/Hr @ 5 Bar (73psi):- 336
Max Pressure (Bar):- 7.9
Above flow data is derived from independant testing, Factory flow chart below
Length (mm):- 130
Diameter (mm):- 50 / 39
Weight (Kg):-0.430
Applications:-
Cross Reference Numbers:-
| Product Code | GST535 |
|---|---|
| Fuel | Petrol + E85 |
| Voltage | 12v DC |
| Manufacturer | Ti Automotive (Walbro) |
| Description |
Walbro 535 lph Competition In Tank Fuel Pump Kit F90000295
Fittings In (mm):- 11 Fittings Out (mm):- 9 Pump:- Ti Automotive (Walbro) F90000295 Voltage DC:- 12 Pulse Width Modulation Compatible:- Yes One Way Valve (NRV):- No Flow Ltr/Hr (Max):- 535 Flow Ltr/Hr @ 3 Bar (44psi):- 456 Flow Ltr/Hr @ 5 Bar (73psi):- 336 Max Pressure (Bar):- 7.9 Above flow data is derived from independant testing, Factory flow chart below Length (mm):- 130 Diameter (mm):- 50 / 39 Weight (Kg):-0.430
Applications:-
Cross Reference Numbers:-
|
